BRANCH INTRODUCTION:
1. BOTTOM PAPER FEEDING
Use big suction belt system. Japan Nitta brand belt. It can work with both cardboard and corrugated board.. The wide rubber wheels ensure that the E, F, and G corrugated does not deform. It can also run more than 300gsm of cardboard or gray board. Lead edge system is option.

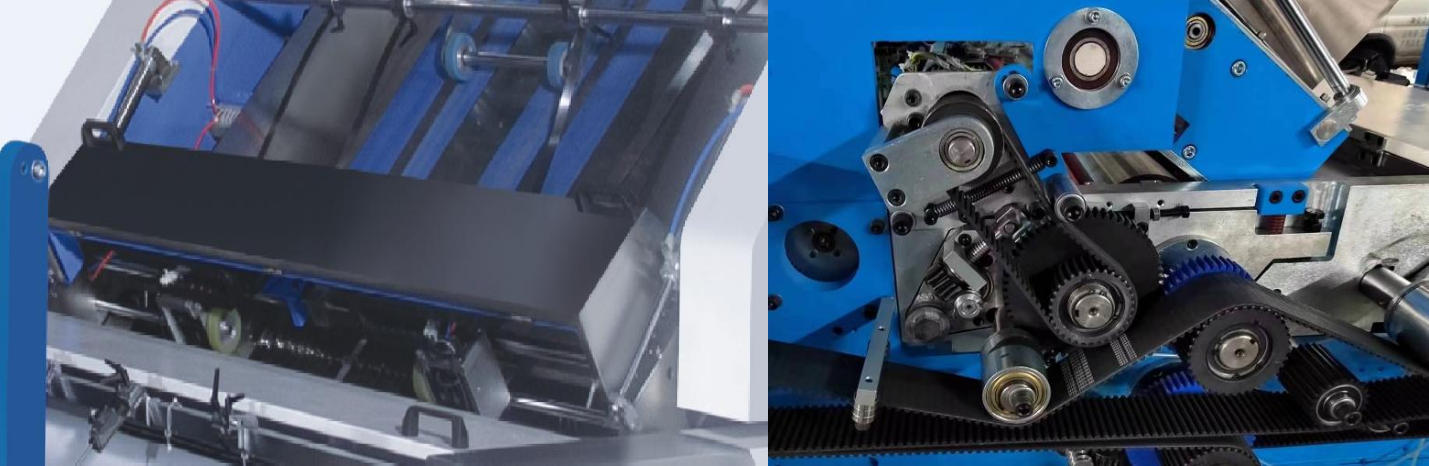

2. TOP SHEET FEEDING MECHANISM
Equipped with high speed shaftless feeder, speed can meet 200meters/minute. Together with Becker vacuum pump. The front and rear of feeder are controlled by the servo motor. After input paper size, it will be automatically positioned. Feeding mode can choose overlap sheet or separation sheet type. Adopts top sheet aligner system to ensure high accuracy.

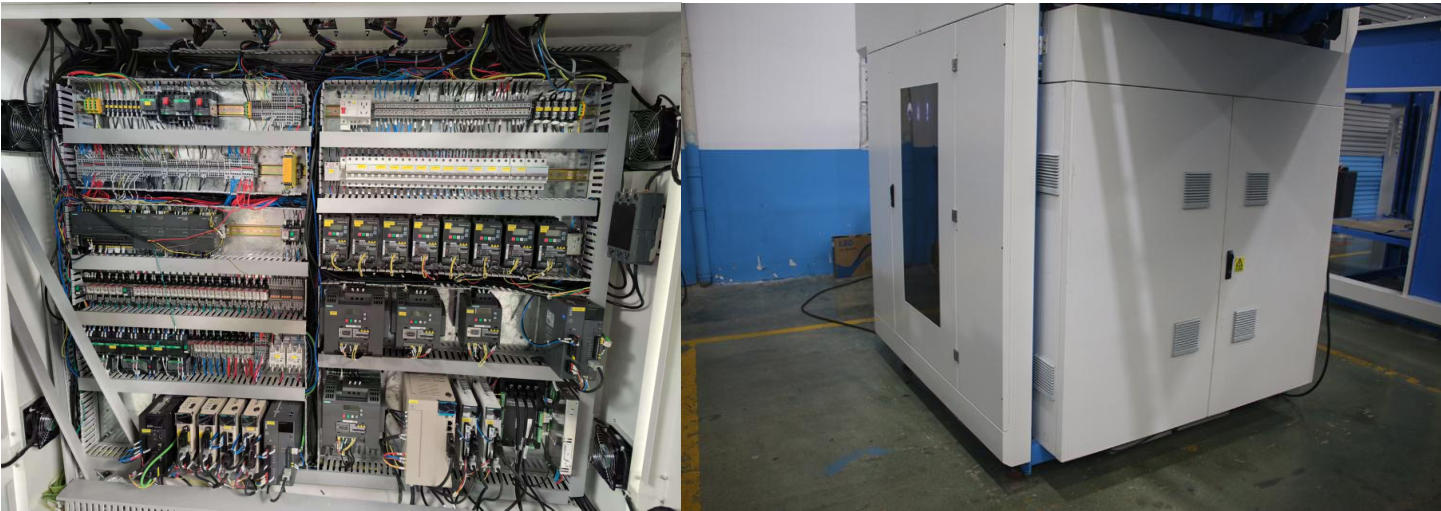

3. ELECTRICAL SYSTEM
Mainly using Germanuy electric system to ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information on the screen.
- The machine is equipped with 10 servo motors, achieving full servo control.
- The Germany PLC in Germany ensures stability and durability.
- All the electrical appliances are placed in one control cabinet, which makes maintenance easier.

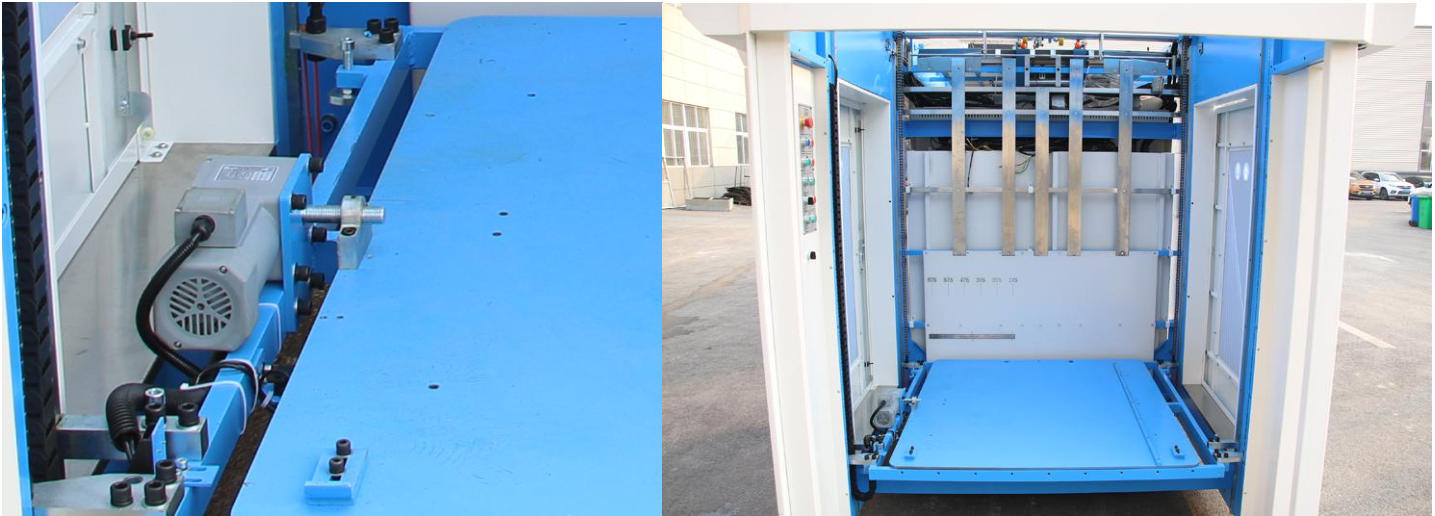

4. PRE-STACKER PART
- Pre-stack pile of paper under the condition of non-stop, improve efficiency. The width of the pre-stacker is controlled by the motor, the size of the paper is automatically positioned.
- The dual -use lifting platform, we can use the pre-stacker structure to push the pre -pile of paper into the platform.
- We can also push the stack of paper directly into the platform. And the platform can be adjusted around the actual situation of the paper stack.
- The second floor platform can move left and right automatically.

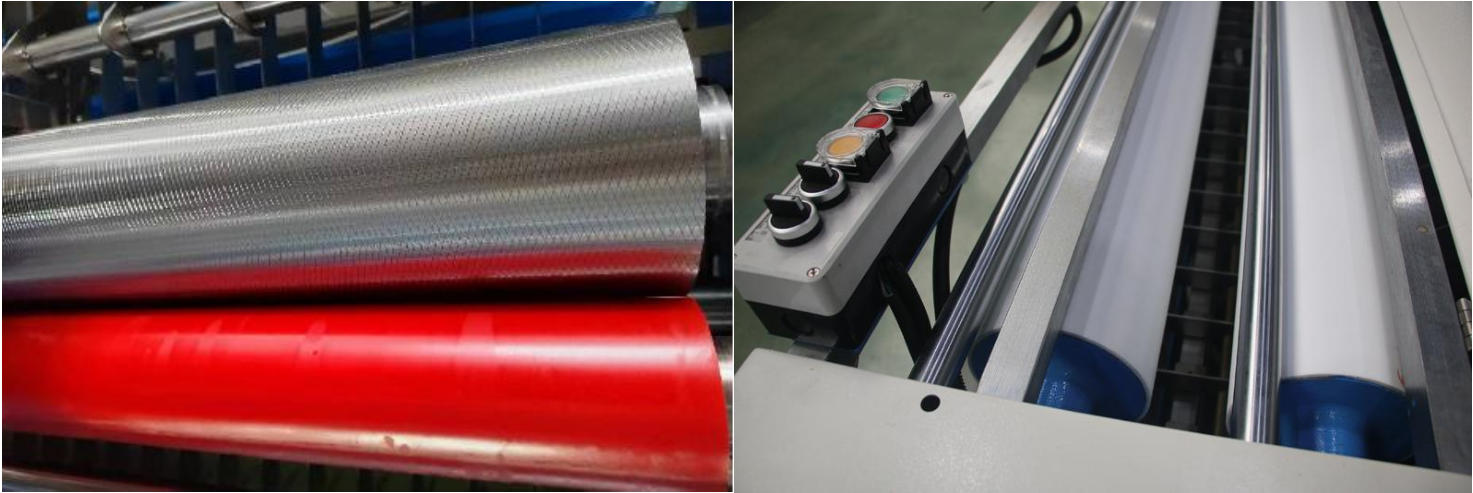

5. POSITIONING SYSTEM & GLUE ROLLER
Equipped with sensors and servo motor, control top sheets to do independent compensation action to make sure high accuracy. The design of large stainless steel anilox roller (160mm in diameter) is stable and high-efficiency, coat evenly and save glue. Also with two new polyfluoroethylene material pressing rollers(150mm diameter), need not cleaning to reduce the labor strength of the operator.

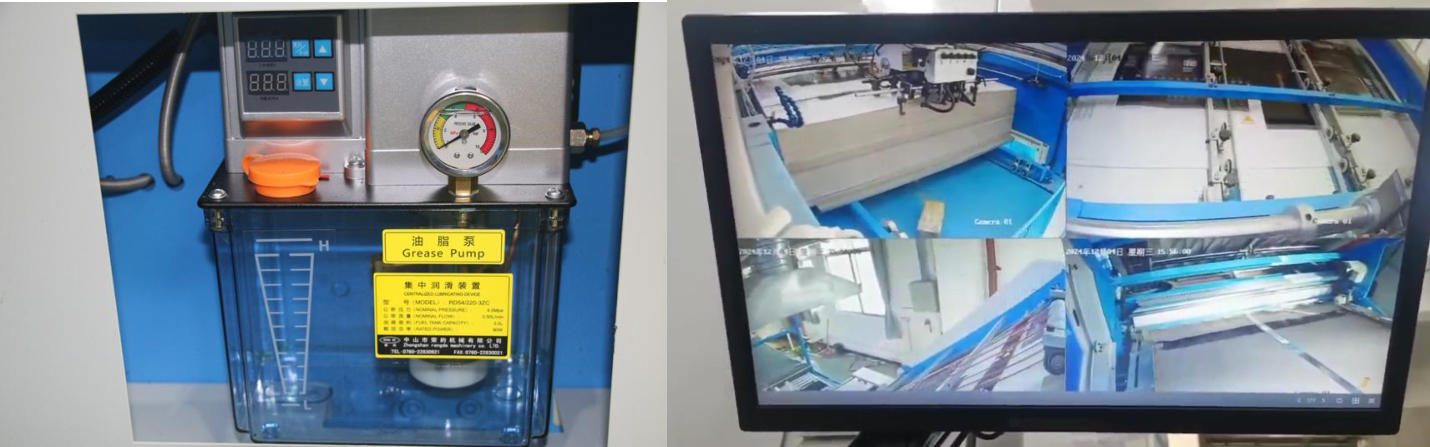

6. AUTOMATIC LUBRICATION AND VIDEO MONITORING
Lubricate the bearing regularly to prolong the service life of the bearing and save the cost.
Using four high-definition cameras, the machine's operating status is constantly monitored.
7. TOP SHEET RUNNING SYSTEM
Top sheet Overlap sheet feeding. Big belt with wheel system, and with bridge motion correction system. Speed is faster and run more steady. more fit for thin paper. No stuck in running.
8. BOARD THICKNESS MEASURE SYSTEM
Adopt a high -precision thickness measurement device with servo motor. All roller pressure will be adjusted automatically. And glue thickness also adjusted by servo.
9. HYDRAULIC LIFTING AND GLUE ROLLER SEPARATED CONTROL SYSTEM
Adopt hydraulic lifting system. When you press the button, it will lift up. It is convenient to wash the glue roller.
Use one separated motor to control the glue roller, when the machine need to stop, the glue roller will not stop. It can keep the glue well, not overflow. Then to save glue.
10. ORDER MANAGEMENT AND DOUBLE SHEETS DETECTION SYSTEM
Order memory function. Machine can storage previous order record. When you want to do previous work. Just arouse previous order, the machine will adjust to this order data automatically.
Double sheets detection system can detect top paper during running to avoid double sheets feeding at the same time.
